Product Info:

Typical application for the interior and exterior under-plaster in upgraded insulations, in roof areas, at drywall constructions, as flyscreen, for loosely laid, etc.

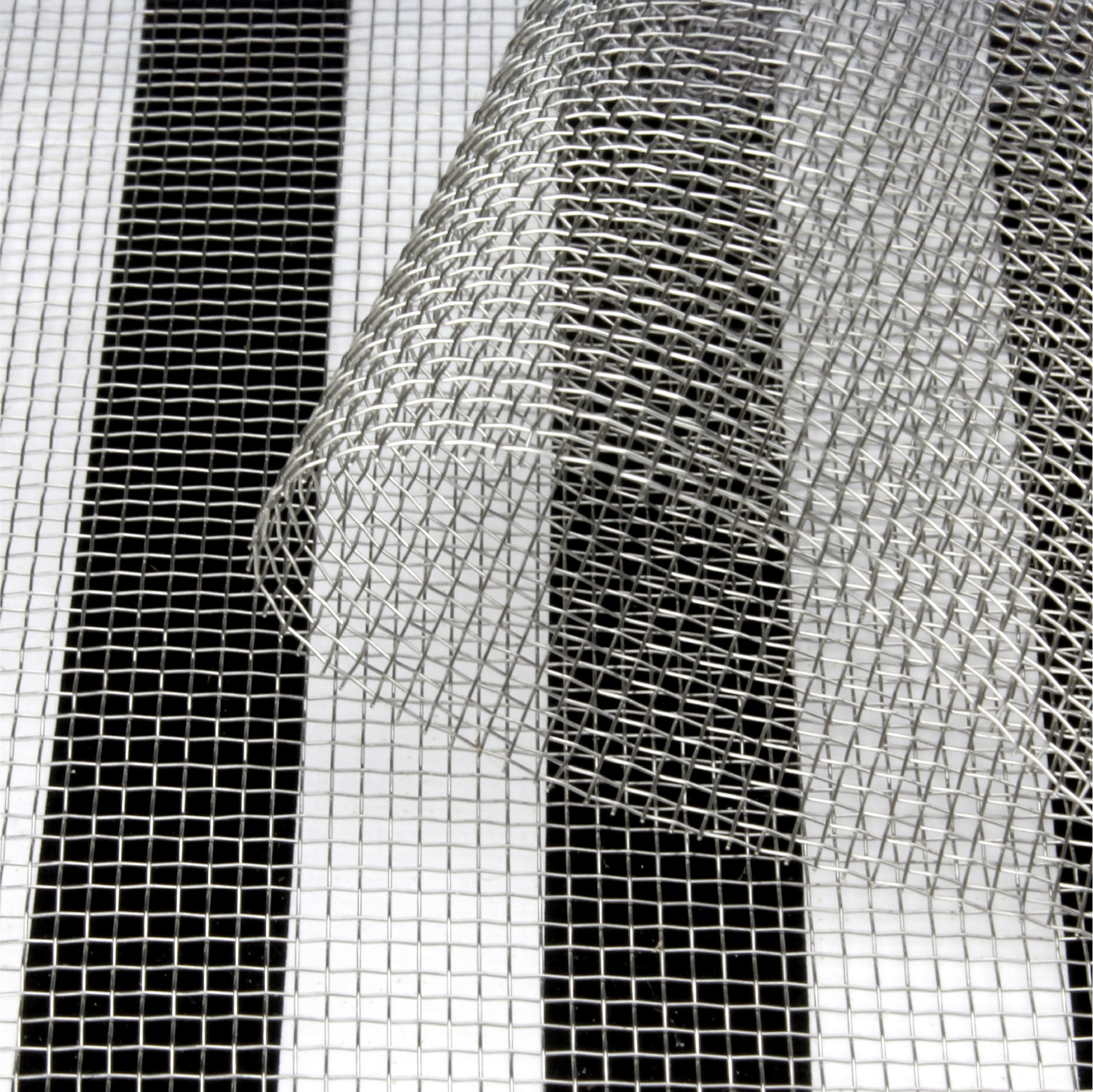

V4A10 is a finely woven, noncorrosive stainless-steel mesh for the protection against high-frequency radiation (HF) and low-frequency electric fields (LF). V4A (AISI 316) is resistant against water, water vapor, air humidity, mild acids and in coastal areas against salty seawater.

• Attenuation: 40 dB, two-layer 55 dB
• Fire-proof material, A1 according DIN 4102:1994
• Surface conductivity: 0.1 Ohm (square resistance)
• Color: Silver

Processing Instructions

In case processing the V4A10 under plaster you should work with a preferably fine and organic filler. Under the floor covering (laminate, parquet, PVC coating, etc.) the V4A10 is being fixed with the adhesive used for the floor covering. For drywall construction and in roof area the mesh elements can be bolt or stapled together. The rule is: Always overlap the single elements at least 5 cm. For grounding use the perforated stainless-steel tape GSS25 by screwing it right across the elements into the surface.

Dimensions:

• Width: 90 cm
• Length: 25 m roll / by the meter
• Mesh width: 1.0 mm
• Wire diameter: 0.16 mm
• Material thickness: 0.45 mm
• Weight: 260 g/m².
