Product Info:

Interior use for walls, ceilings and floors. As intermediate wallpaper, for drywall constructions, loosely laid, to shield devices, etc.

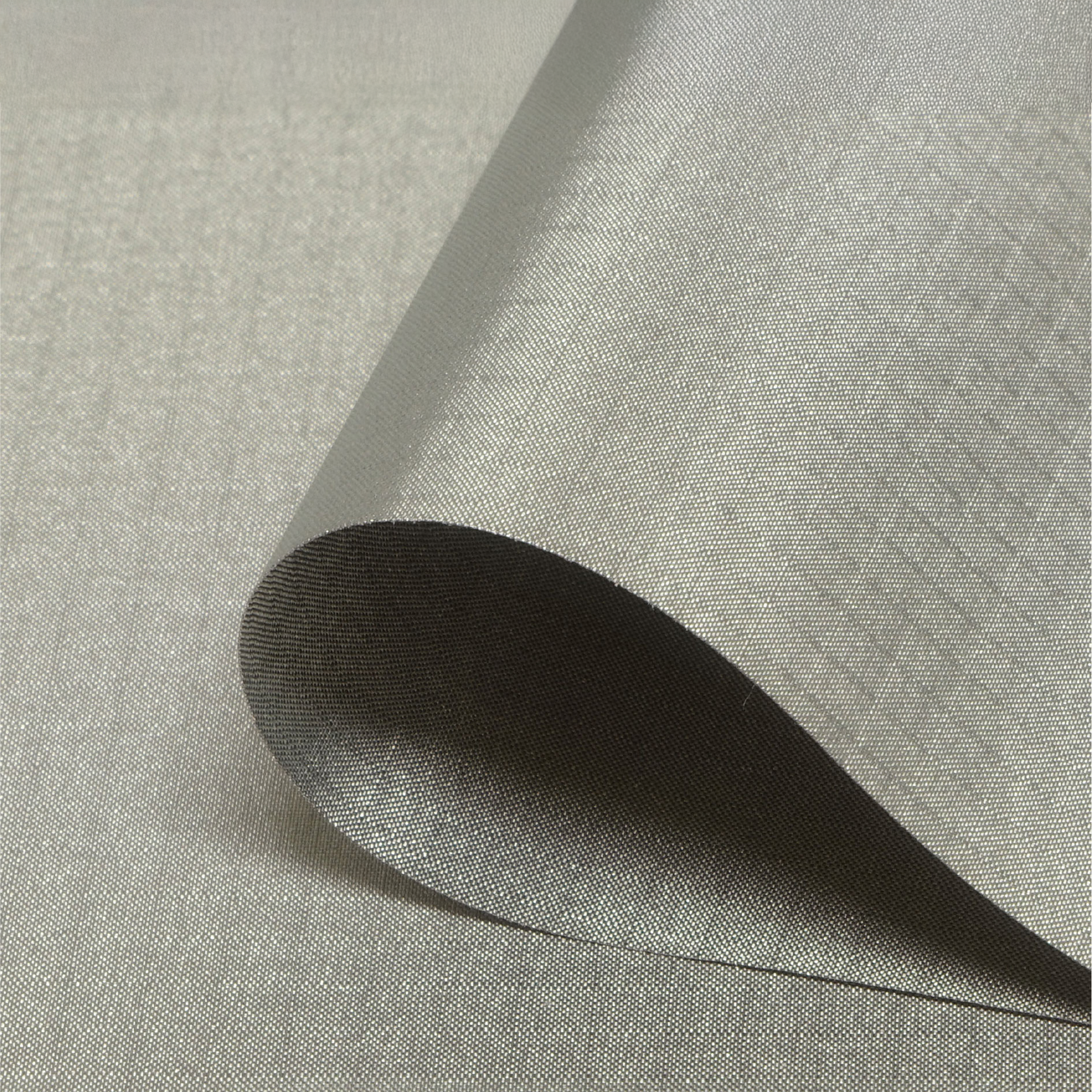

HNG100 is a compact woven, metallized polyester netting for the large-scale shielding of high-frequency radiation (HF) and low-frequency electric fields (LF). Our highest shielding professional product for walls, ceilings and floors. Commercial product for data centers, laboratories, TEMPEST rooms, also available for private use.

• Attenuation: 98 dB
• Color: Gray / Brown
• Tensile strength: 90 lbf
• Materials: Polyester, copper, nickel
• Surface conductivity: 0.01 ohm (square resistance)

Processing Instructions

In case of processing as an intermediate wallpaper, for glueing we recommend a commercially available dispersion glue. The wall and the backside of the material are coated with a paint roller. Insert the material wet on wet, fix it manually (with disposable gloves) and use a gummed roller to get a crease-free surface. Work quickly and strip by strip only, so that the dispersion glue does not dry. A crease-free bonding is only possible on perfectly plane surfaces. Further the material can be laid loosely, e.g. under floor coverings or can be stapled, e.g. in drywall constructions. Always overlap the single strips, so that they connect electrically for grounding.

Dimensions:

• Width: 90 cm
• Length: By the meter / 100 m roll
• Material thickness: 0.08 mm
• Weight: 90 g/m²
